Everything you need in one solution

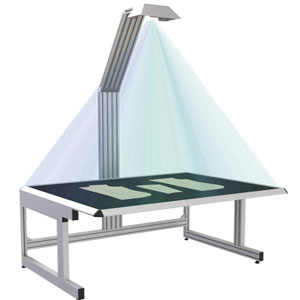

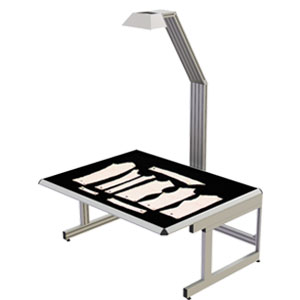

Thanks to PhotoSHAPE you will no longer need the traditional whiteboard to digitize using the mouse, point by point. PhotoSHAPE automatically detects every detail of your pattern (edges, notches, holes, etc.)
Place the shapes on the scan area Place your patterns, templates or shapes on the scan area. This is made up of a non-reflective magnetic surface. Take the photo directly from the PhotoSHAPE software and click on "track" ... 10 seconds and ... work finished After placing the shapes on the scan area, directly from the PhotoSHAPE software, take the photo.
This is processed by our algorithm capable of correcting its distortion and is displayed on the PC. Once you have verified the correct result of the photo, just click on “Track”. In just 10 seconds the software will process the image detecting its edges, notches, holes, etc. The work is done!
Edit the digitized model.The digitized model is ready to be archived in the model library or to be edited within your CAD.You will find, after just 10 seconds, all the vectorized shapes, editable through the control points that define the model.Perimeter, notches and holes are automatically recognized. Name, save and edit your pieces … do everything that without PhotoSHAPE you would never have thought you could do!
You cut nestings of any length.
Our cutting solutions are equipped with what is called conveyor system.
This means that the machine is equipped with a closed ring belt with the double function of background for cutting (sacrificial material) and means of transporting the material to be cut.
Thanks to this system, the cutting phases are automated, from the loading of the material up to the transport of the cut in the collection area.This allows, thanks to known advancements controlled by our software, to cut nesting with much longer lengths than the physical length of the useful cutting area of the machine.
The nesting is divided into cutting windows and at the end of each one, an advancement is made and the cutting is resumed passing to the next window. This procedure is repeated until the entire length of the loaded placement is exhausted

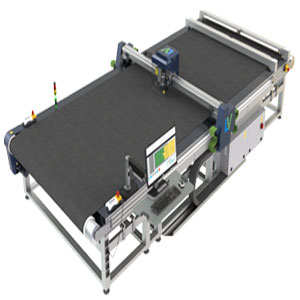

SmartCUT-CY is extremely intelligent. After an accurate mapping of the cutting plane, thanks to an algorithm developed ad hoc, the machine knows exactly for each cutting coordinate the descent height of the tool to guarantee a constant penetration of the blade into the fabric and the carpet to ensure a continuous, precise and homogeneous cut.

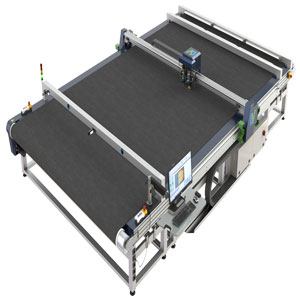

With SmartCUT-LF you can meet all your cutting needs thanks to the possibility of cutting both the numerous types of leather on the market and the infinite fabric variations.

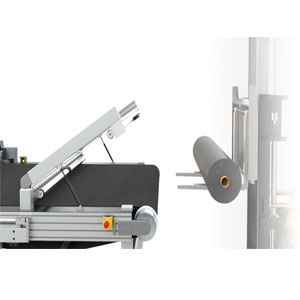

This automatic cutting machine is equipped with a front loading area that allows an easy spreading of large whole skins on the cutting area, as well as a cradle for spreading the fabric.

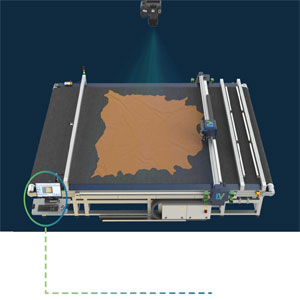

SmartCUT-LF is equipped with a photographic system through which the operator can position the pieces / nesting on the leather or fabric directly via PC.
The system takes a picture of the cutting plane on which the leather / fabric has previously been laid.
The picture, straightened by our algorithm, is displayed on the screen and from here the operator works to arrange his own pieces to be cut by simply using the mouse.

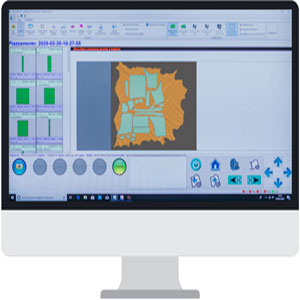

ViewMatch is the simplest, fastest and most effective system for positioning the pieces to be cut.
The numerous features with which the software is equipped will allow you to zoom, match nestings, move or rotate single pieces, modify the cutting sequence and much more …
Cutting will become fun.
Equipped for every need.

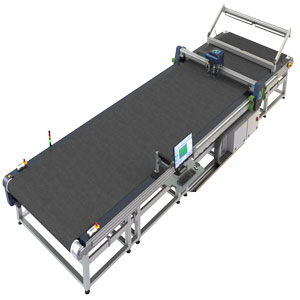

The SmartCUT-TM cutting head is equipped with 3 tool stations. The two external workstations are capable of housing cutting tools for which movement around their axis is required.
In the specific case, SmartCUT-TM houses a rotating cutting tool with a decagonal blade and an oscillation cutting tool.
The high speed decagonal blade allows to cut softer and less thick materials.
The oscillating cutting tool allows the cutting of thicker and harder materials.
The central station is able to house optional tools such as the nib to mark pieces or a drill to obtain small holes.
The SmartCUT-TM cutting head is equipped with two precise, quick and extremely reliable cutting tools to meet your every need. Cut any material.
PVC, Hypalon, rubber, and many others.
Trust in LVCut. Thanks to our software you can set infinite cutting configurations for each type of material.
Select the configuration and SmartCut will already know what to do.
Short Description:
Features:
1. The use of advanced European multi-axis interpolation technology, stable performance, high precision.
2. Separate chassis design, heat dissipation, reduce the failure rate, extend the service life of the machine.
3. R & D of transmission software, to achieve a multi-version transmission, change page cutting.
4. Italy imported linear guide and timing belt, to improve accuracy, to achieve repeat the accuracy of sample zero error.
5. LCD touch screen, to achieve man-machine...

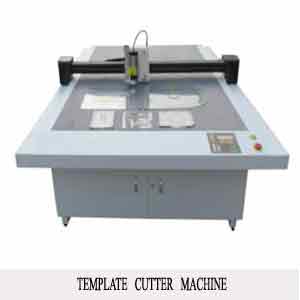

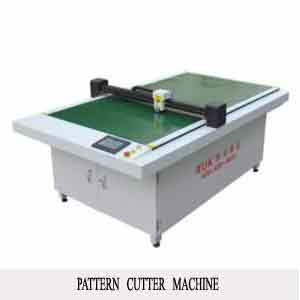

Features:
1. Automatic partition strong suction, to solve the small sample of the adsorption problem.
2. High-speed head, to achieve rapid cutting, sample template smooth, perfect convergence.
3. Garment template is simple, easy to learn, completely solve the problem of sewing clothing,
4. Can be connected to any CAD software, widely used in clothing, luggage, furniture and other industries. Technical Parameters Series MC03/05 series Operation properties Work with computer synchron...
